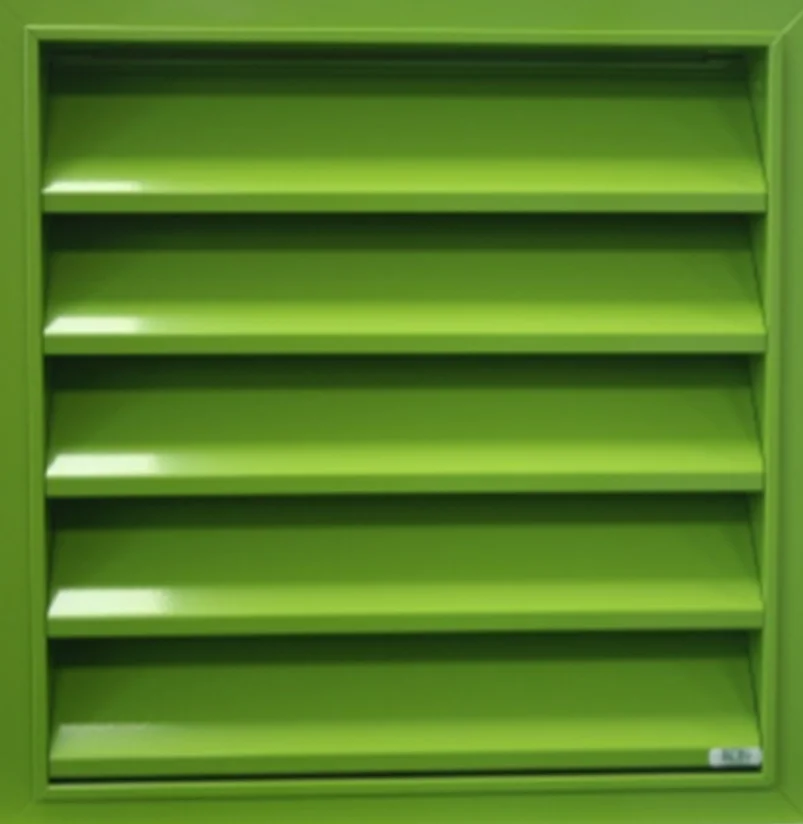

IKL752 Glaze in louvre

IKL752 Glaze in louvre

US$0.00

Product Description

Blade Centre 75mm. Blade angle 45 degree.
Visual free area 86%. Physical free area  57%.
Frame depth 80.8mm
Glazing options 28mm standard
Other glazing depths can be provided
Tested to EN 13030:2002
BSRIA Test report 56834/1

Options

Standard RAL or BS colours. Anodizing to special order.
Drainage channel
Insect mesh
Bird mesh
Single skin, or double skin insulated blanking panels
with or without plenum box

Click to view product colour charts →

Quantity:
Add To Cart
K-factor 19.04 Ce 0.232
Watertightness % Class Pressure Drop PD
Velocity 0.0 99.8 A Face Velocity 0.5 2.85
0.5 99.3 A 1.0 11.42
1.0 98.0 B 1.5 25.70
1.5 94.4 C 2.0 45.70
2.0 83.0 C 2.5 71.40
2.5 67.8 D 3.0 102.82

Performance: airflow, louvre with insect mesh

Pressure drop (Pa) + Face velocity (m/s)
