IKL336 Structurally glazed
IKL336 Structurally glazed
US$0.00
Product Description
Blade Centre 34mm . Blade angle 60 degree.
Visual free area 59%. Physical free area 43.5%.
Frame depth 36.2mm.

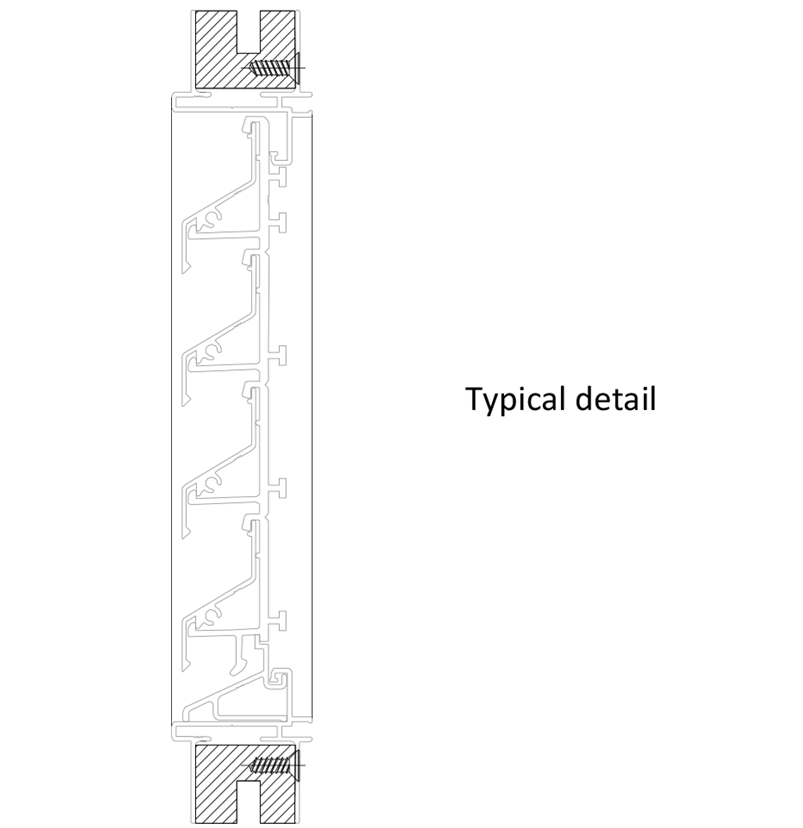

Designed for integration into structurally glazed curtain wall frames. Toggle glazing blocks are custom designed to suit individual systems. Overall glazing thickness 28mm.
Tested to EN 13030:2002
BSRIA Test report 52719/1
Options
- Standard RAL or BS colours. Anodizing to special order.
- Drainage channel
- Insect mesh
- Bird mesh
- Single skin, or double skin insulated blanking panels
- with or without plenum box.
Quantity:
| K-factor 22.91 | Ce 0.208 | |||
|---|---|---|---|---|
| Watertightness | % | Class | Pressure Drop | PD |
| Velocity 0.0 | 99.7 | A | Face Velocity 0.5 | 3.43 |
| 0.5 | 99.4 | A | 1.0 | 13.75 |
| 1.0 | 97.4 | B | 1.5 | 30.93 |
| 1.5 | 81.4 | C | 2.0 | 54.98 |
| 2.0 | 49.9 | D | 2.5 | 85.91 |
| 2.5 | 32.4 | D | 3.0 | 123.71 |
