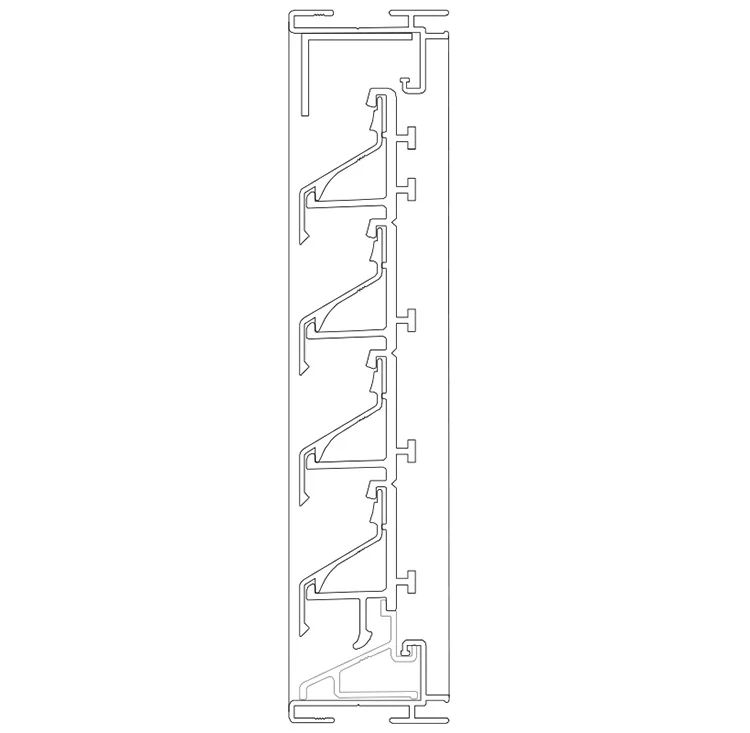

IKL303-PFA50 Rebate frame louvre

IKL303-PFA50 Rebate frame louvre

US$0.00

Product Description
Blade Centre 30mm . Blade angle 59 degree.
Visual free area 58%. Physical free area 50%.
Frame depth 36.2mm
Tested to EN 13030:2001
BSRIA Test report 60945/1

Options
Standard RAL or BS colours. Anodizing to special order.
Insect mesh
Bird mesh Drainage channel
Can be supplied with fixing lugs if required
Single skin, or double skin insulated blanking panels
with or without plenum box.

Click to view product colour charts →

Quantity:
Add To Cart

Options

Product Description

Standard RAL or BS colours. Anodizing to special order.
Insect mesh
Bird mesh Drainage channel
Can be supplied with fixing lugs if required
Single skin, or double skin insulated blanking panels
with or without plenum box.

Blade Centre 30mm . Blade angle 59 degree.
Visual free area 58%. Physical free area 50%.
Frame depth 36.2mm
Tested to EN 13030:2002
BSRIA Test report 60945/1

Water tightness Coefficient of entry Coefficient of discharge
Ce 0.225
K Factor 19.7
Velocity % class Pressure Drop -
Face Velocity
Pd Pressure Drop Pd
0.0 99.6 A 0.5 3.0 0.5 3.1
0.5 99.0 A 1.0 11.8 1.0 12.5
1.0 97.4 B 1.5 26.6 1.5 28.3
1.5 91.2 C 2.0 47.2 2.0 50.2
2.0 64.5 D 2.5 73.9 2.5 78.5
2.5 40.9 D 3.0 106.4 3.0 113

Entry performance: airflow, louvre with insect mesh

Face velocity (m/s)

Discharge performance: airflow, louvre with insect mesh

Face velocity (m/s)
