Designed for applications where fall from height is a concern.

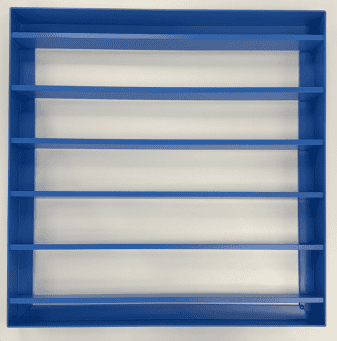

45mm × 10mm twin-wall, square-edged brise soleil custom extruded aluminium blades.
Fully welded outer frame: 57.1mm × 31.8mm × 3.2mm.
Blade pitch: 100mm. Blade angle: 90°.
Approximate free area: 79% (varies depending on configuration).
Available in standard and special RAL and BS colours.
IKON is a BSI-registered company operating a quality management system in accordance with ISO 9001:2015 (Certificate No. FM 800897).
Product Testing
Impact resistance tested to BS 6180:2011 — Edge guarding load testing in accordance with Building Regulations Approved Document Part K2.
(BRE Report No. P128172-1001, Issue 1) — Occupancy class designation 1–2 and 3–4.
Infill point load at blade end: 1.5kN.
(Impact resistance tested to BS EN 13049:2003 (sample size 1200mm × 2200mm, 100mm pitch, 90° blade angle).
