Continuous louvres providing both functional and aesthetic integration with building façades

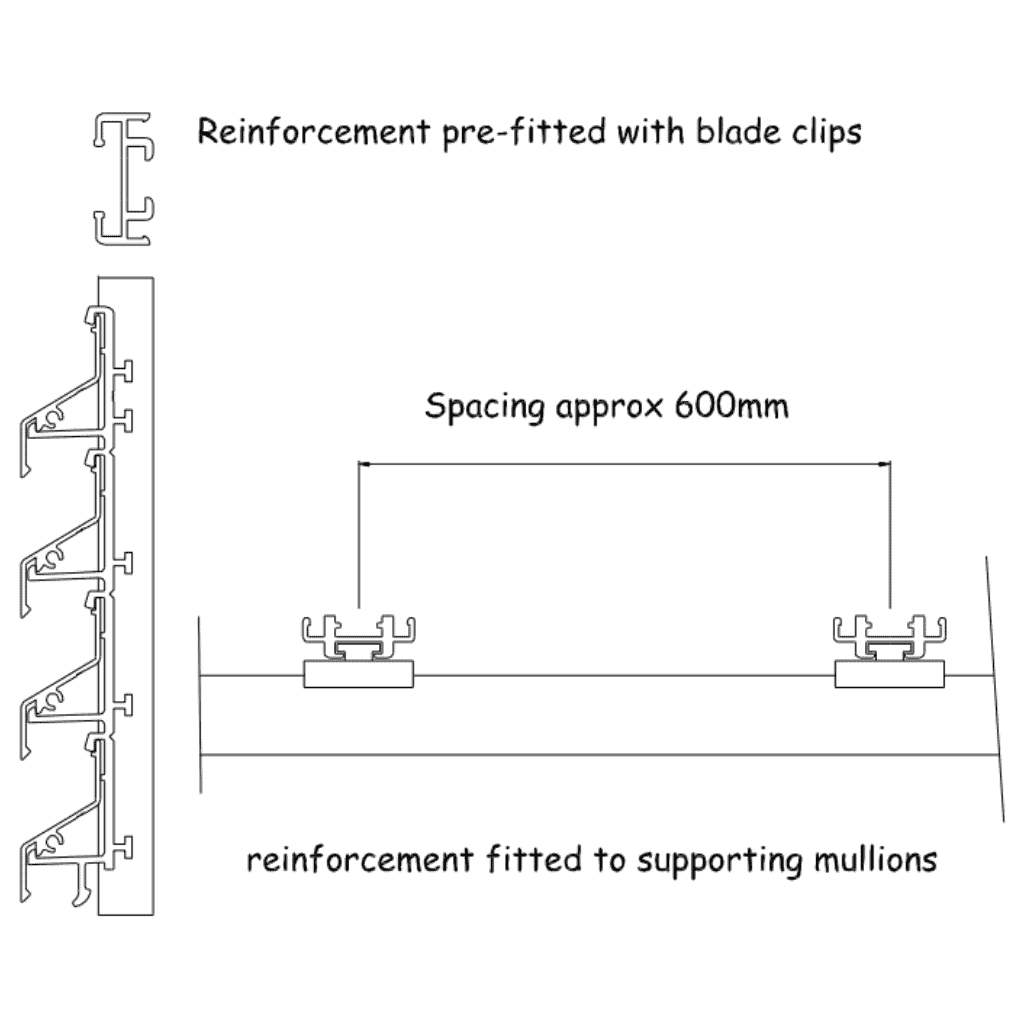

Reinforcement bars are supplied pre-assembled with glazing clips and are concealed once the louvre blades are installed
Blade centre: 34mm
Blade angle: 60°
Visual free area: 59%
Physical free area: 43.5%
Louvre element tested to EN 13030:2001
BSRIA test report: 104080/2
Options
Standard RAL or BS colours
Anodizing to special order
Insect mesh and Bird mesh
Single skin, or double skin insulated blanking panels
